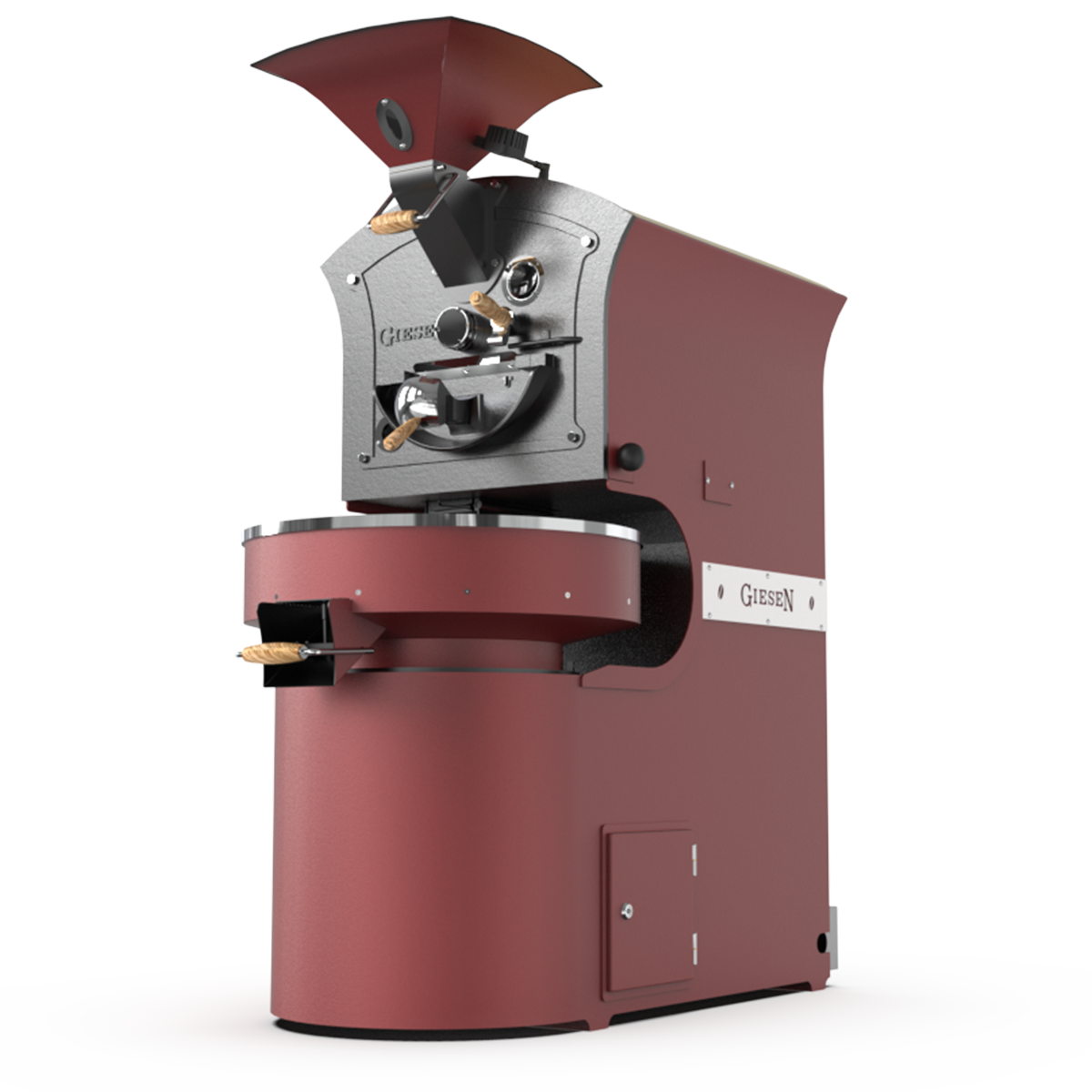

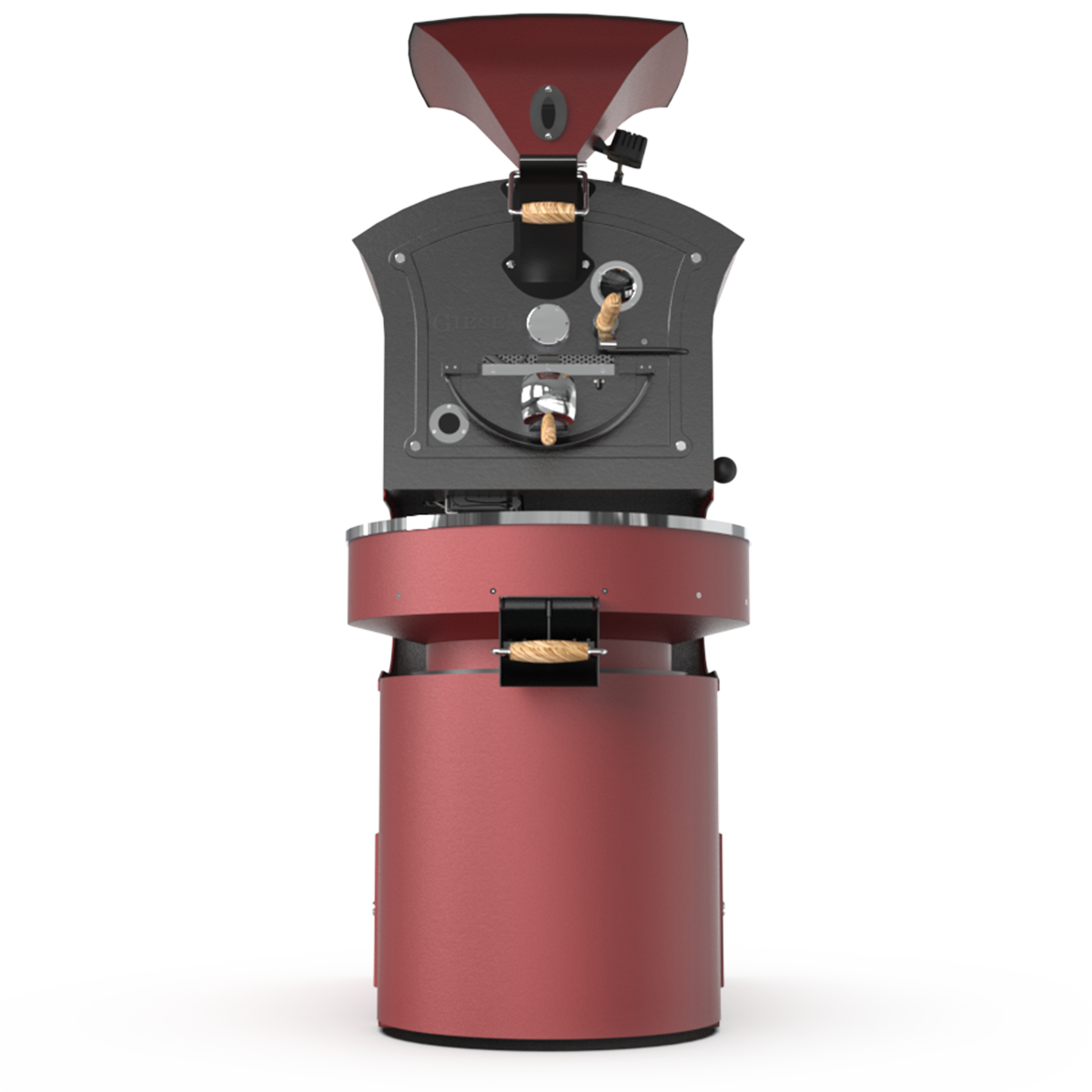

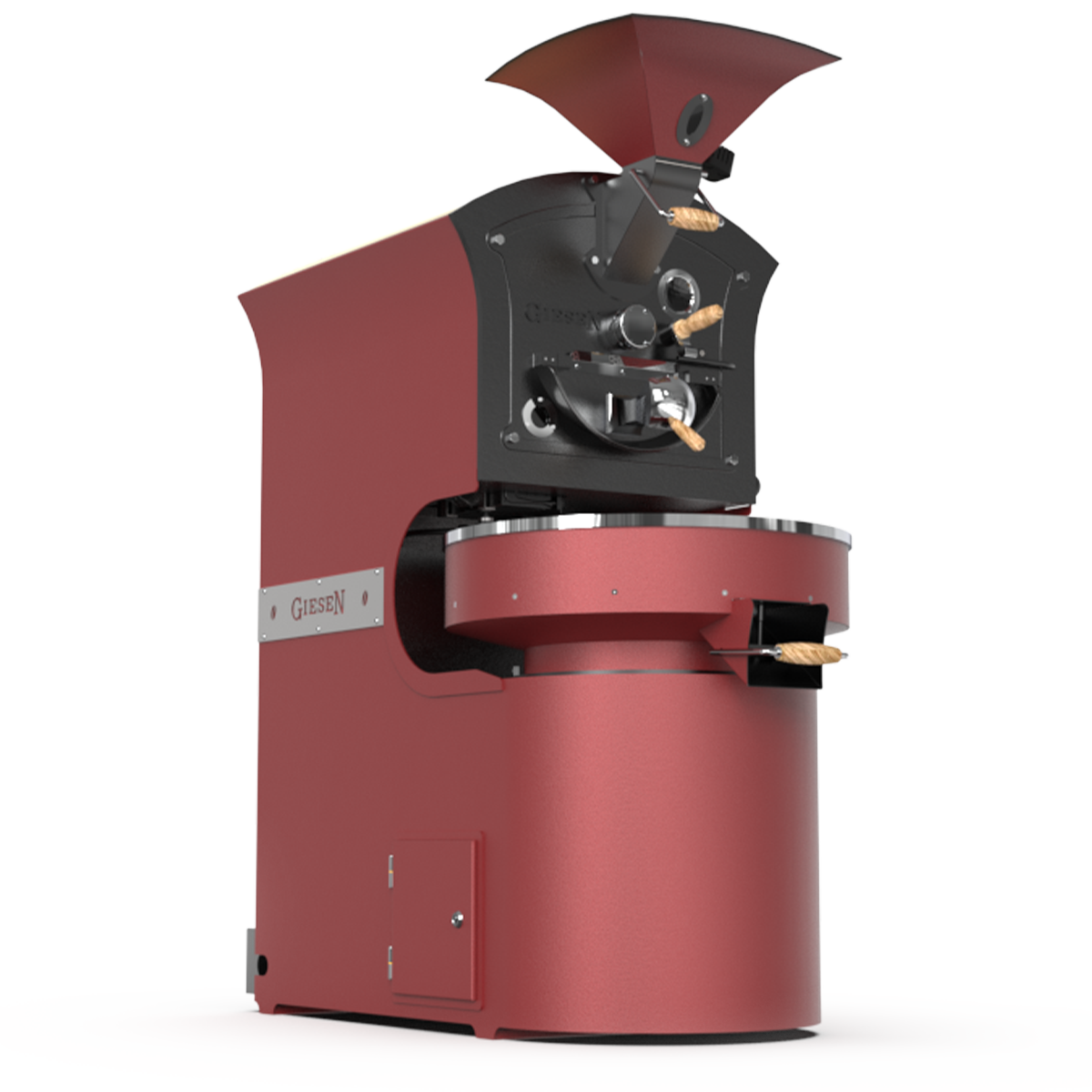

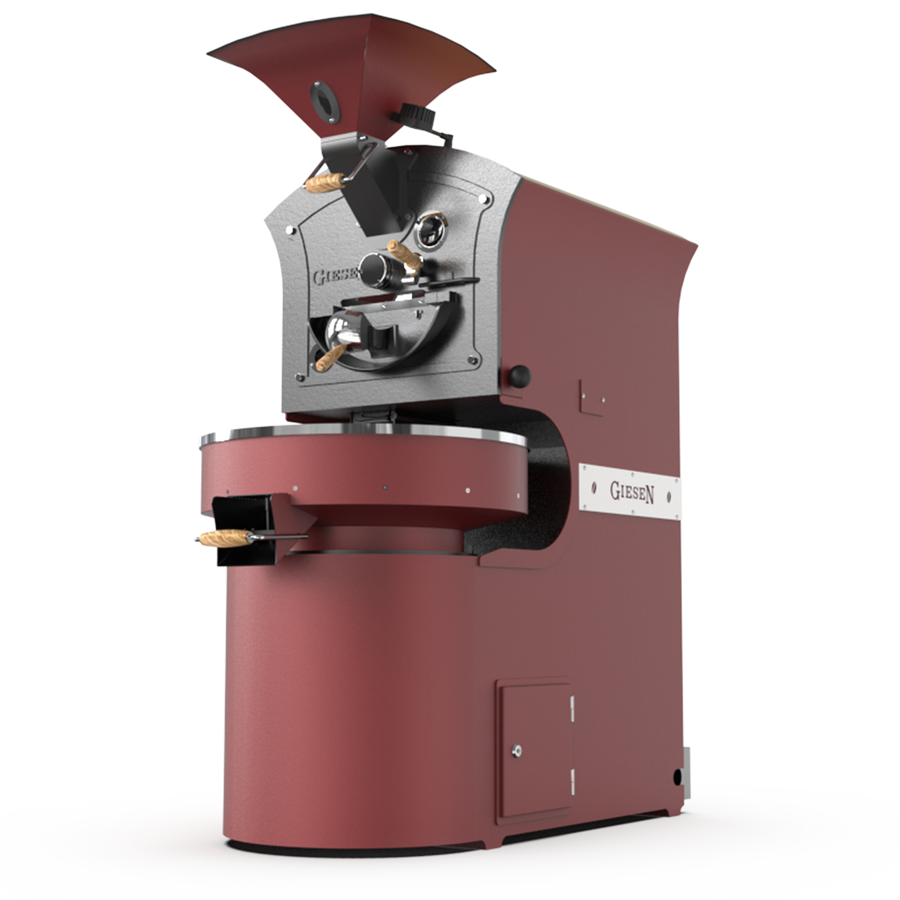

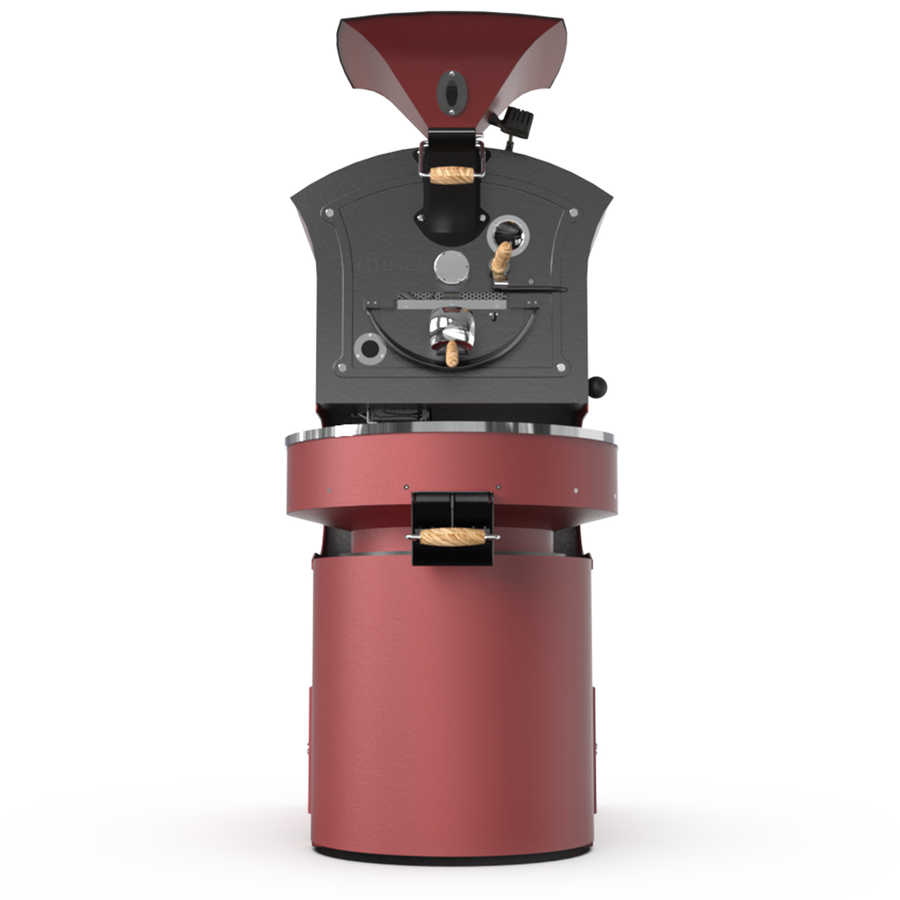

W6A roaster
The W6A is our classic coffee roaster, blending timeless design with modern technology. This mid-size roaster handles up to 6 kilograms per batch, ideal for small to medium roasting businesses. It features an advanced touchscreen interface, programmable roast profiles, and comprehensive data logging for precise control. Efficient heating and airflow systems ensure superior roast quality. Built for durability and safety, the W6A delivers consistent, high-quality results and a lifetime of exceptional roasts. Enhance your coffee shop or expand your roastery with the W6A, combining tradition and innovation.
- The classic Giesen roaster
- Roasts up to 24 kilos of coffee per hour
- Roasts on natural, butane or propane gas
- 1427 x 723 x 1705 mm | 485 KG
Choose options
Specifications
General
General specifications include the W6A coffee roaster's dimensions, weight, minimum and maximum batch sizes and the sound level the roaster produces.
Measurements
1427 x 723 x 1705 mm
Weight
485 kg (roaster only)
Minimum batch size
3 kg
Maximum batch size
6 kg
Sound level
70 dB (A)
Specifications
Ranges
The ranges include the minimum and maximum underpressure setting of the W6A coffee roaster, the minimum and maximum drum speed, and the minimum and maximum temperature setting.
Underpressure range
80 - 150 Pa (min - max)
Drum range
36 - 51 Hz (min - max)
Hz and RPM can be selected
Temperature setpoint range
100 - 250 °C (min - max)
°C and °F can be selected
Additional specifications
Gas
Gas connection
G 3/8" (male)
Maximum gas consumption
G20 - 1.8 m³/h
G25 / G25.3 - 2.1 m³/h
G30 - 0.665 m³/h
G31 - 0.526 m³/h
Gas inlet pressure
G20 - 20 mbar
G25 / G25.3 - 25 mbar
G30 - 30 / 29 / 50 mbar
G31 - 30 / 37 / 50 mbar
Electric
Supply voltage
230V AC (1L+N+PE)
External fusing
1 x 16A
Maximum electrical power
1,7 kW
Optional additions
Giesen Profiler
Destoner
External cyclone
Green coffee conveyor
SFE filter
Catalytic emission cleaner
Support router
