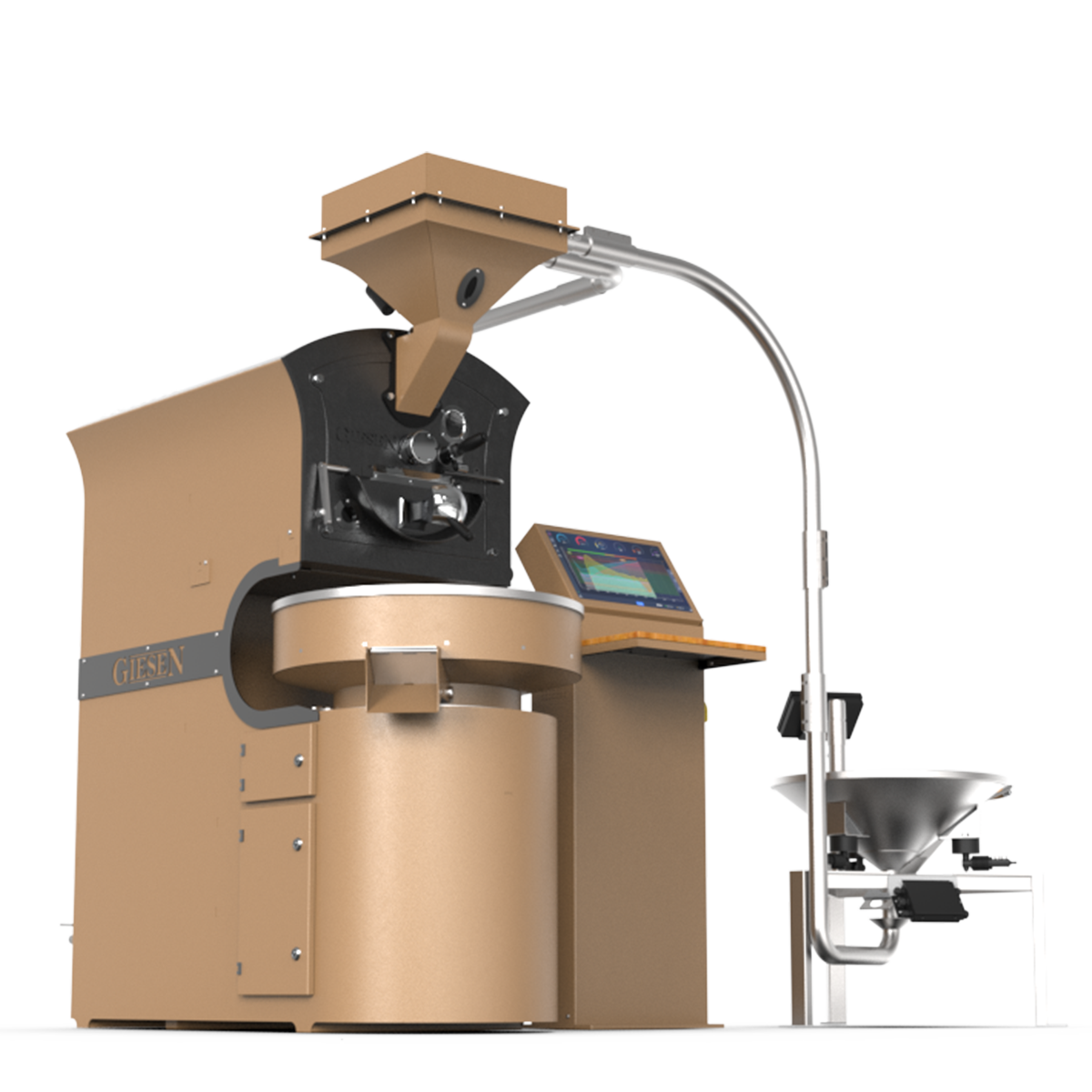

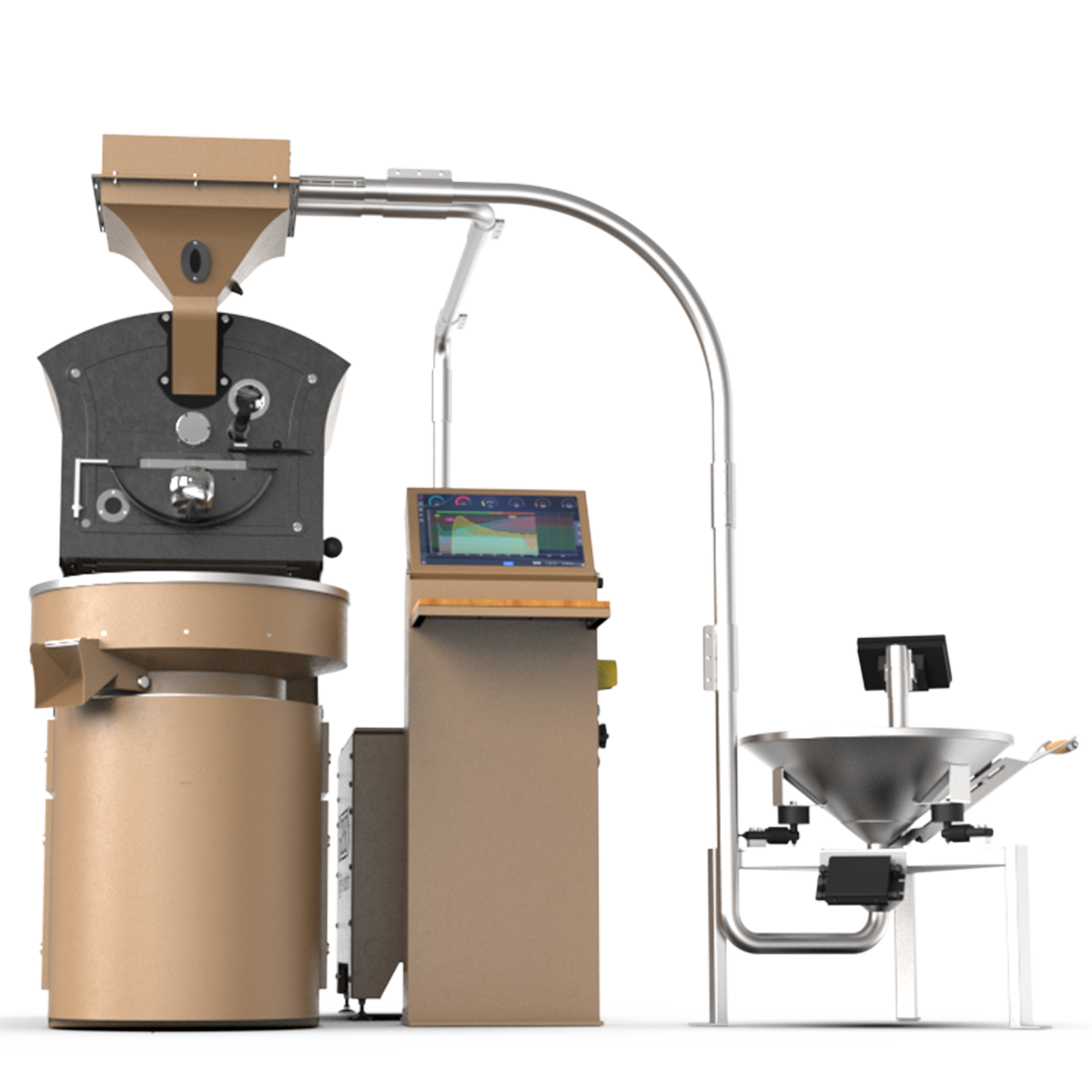

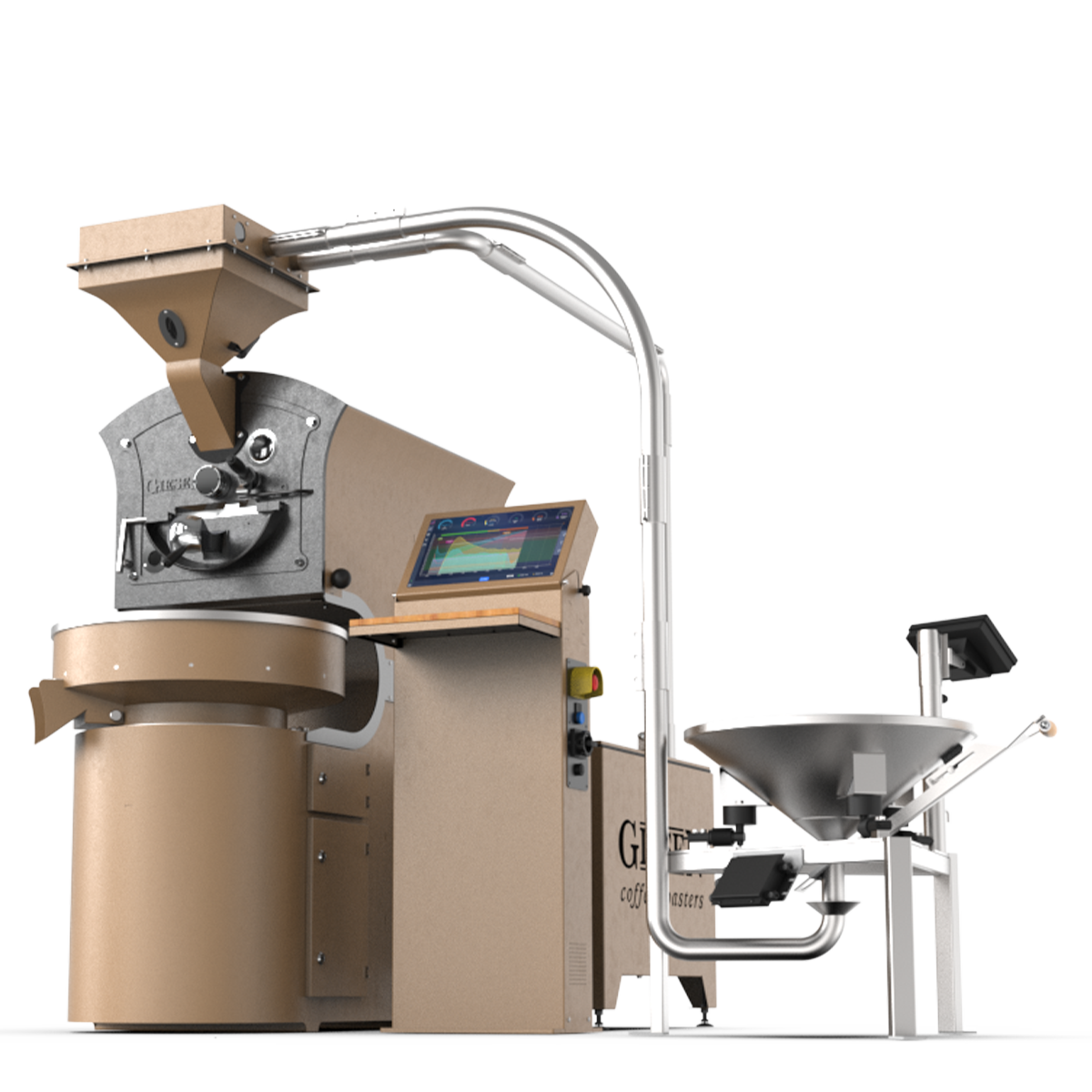

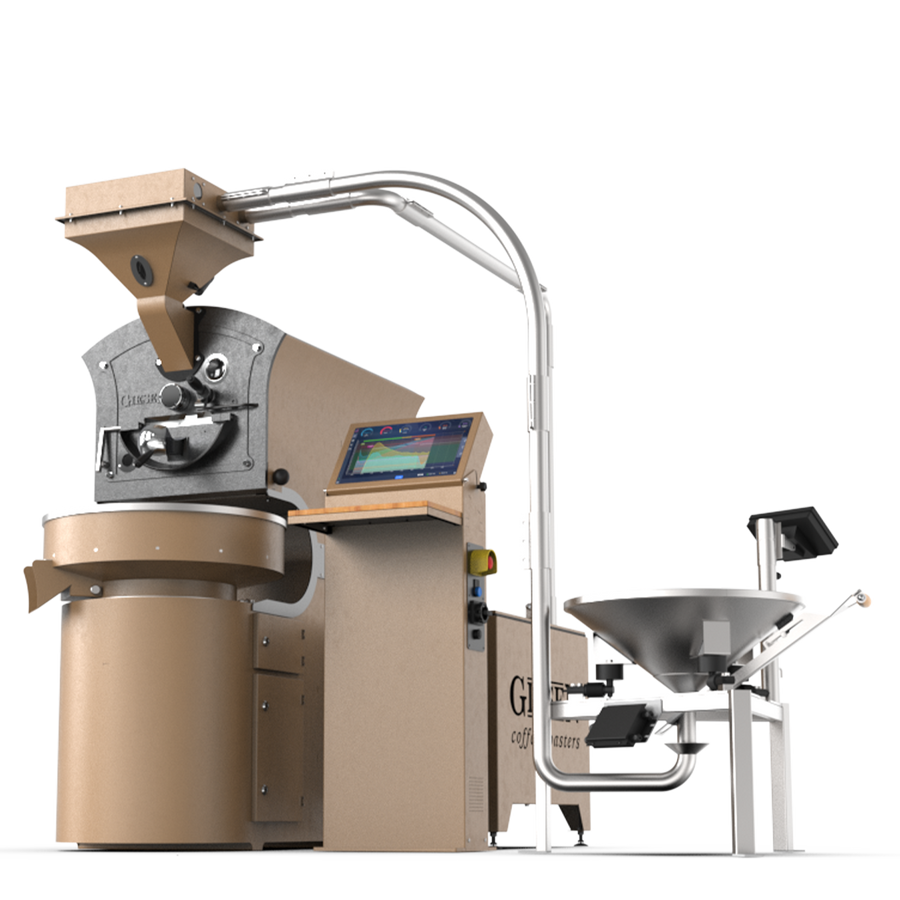

W6A Pro roaster
Introducing the Giesen W6A Pro; combining precision, automation, and superior design, the W6A Pro offers an unparalleled roasting experience. It is the top choice for professional roasters seeking to elevate their craft, with advanced features and user-friendly design providing exceptional control and consistency. Whether expanding your roastery or refining techniques, the W6A Pro offers the reliability and innovation needed to succeed in competitive coffee roasting.
- Fully automate your roasting process
- Roasts up to 28 kilos of coffee per hour
- Completely integrated within Giesen Profiler
- 1623 x 2414 x 1944 mm | 600 KG
Choose options
Specifications
General
General specifications include the W6A Pro coffee roaster's dimensions, weight, minimum and maximum batch sizes and the sound level the roaster produces.
Measurements
1623 x 2414 x 1944 mm (roaster in combination with GCC)
Weight
600 kg (roaster only)
Minimum batch size
3,5 kg
Maximum batch size
7 kg
Sound level
70 dB (A)
Specifications
Ranges
The ranges include the minimum and maximum underpressure setting of the W6A Pro coffee roaster, the minimum and maximum drum speed, and the minimum and maximum temperature setting.
Underpressure range
80 - 150 Pa (min - max)
Drum range
36 - 51 Hz (min - max)
Hz and RPM can be selected
Temperature setpoint range
100 - 250 °C (min - max)
°C and °F can be selected
Additional specifications
Gas
Gas connection
G 1/2" (female)
Maximum gas consumption
Natural gas - 2.1 m³/h
Propane gas - 0.76 m³/h
Gas inlet pressure
G20 - 20 mbar
G25 / G25.3 - 25 mbar
G30 - 30 / 29 / 50 mbar
G31 - 30 / 37 / 50 mbar
Electric
Supply voltage
230V AC (1L+N+PE)
External fusing
1 x 16A
Maximum electrical power
2,5 kW
Optional additions
Destoner
External cyclone
Green coffee conveyor
SFE filter
Catalytic emission cleaner
Support router
