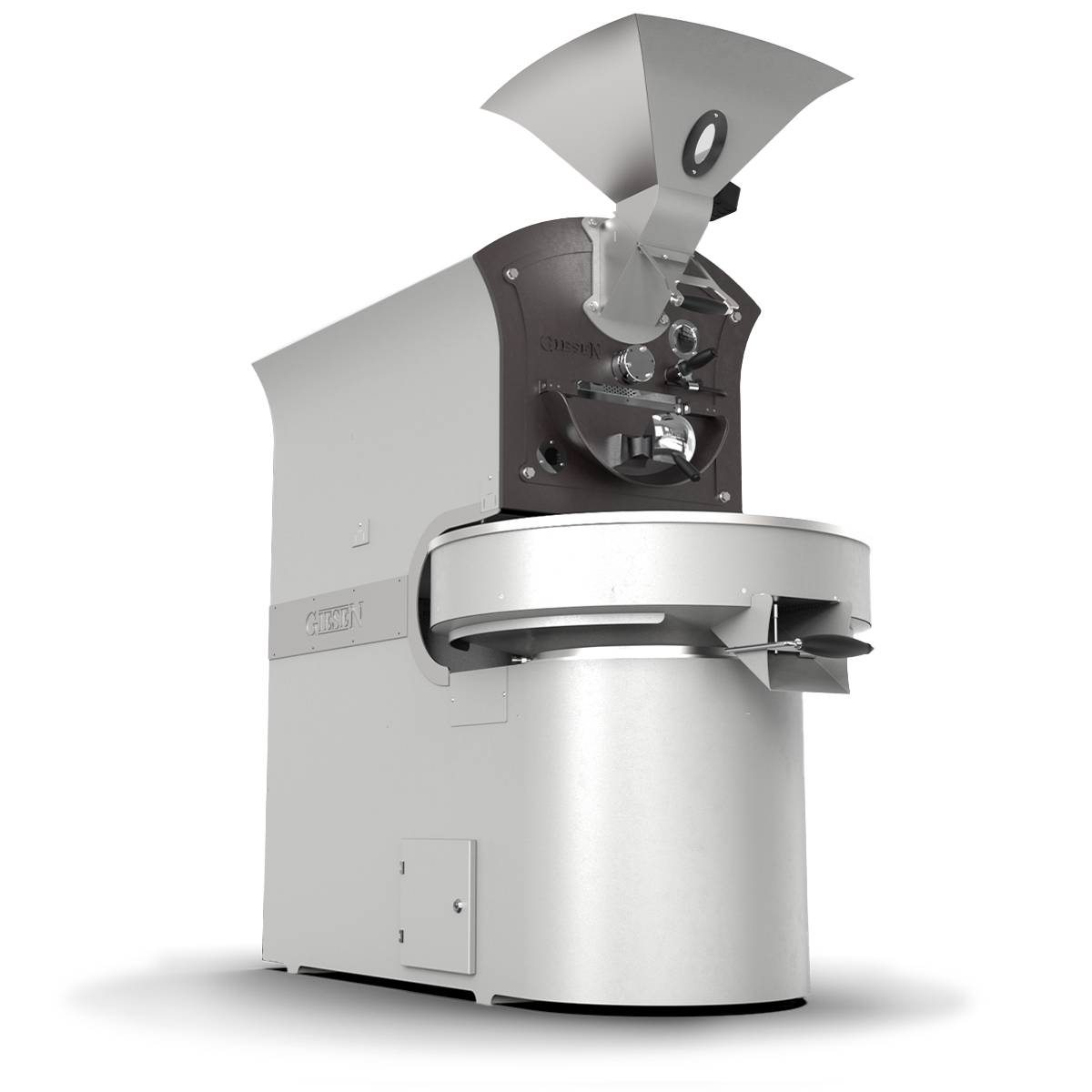

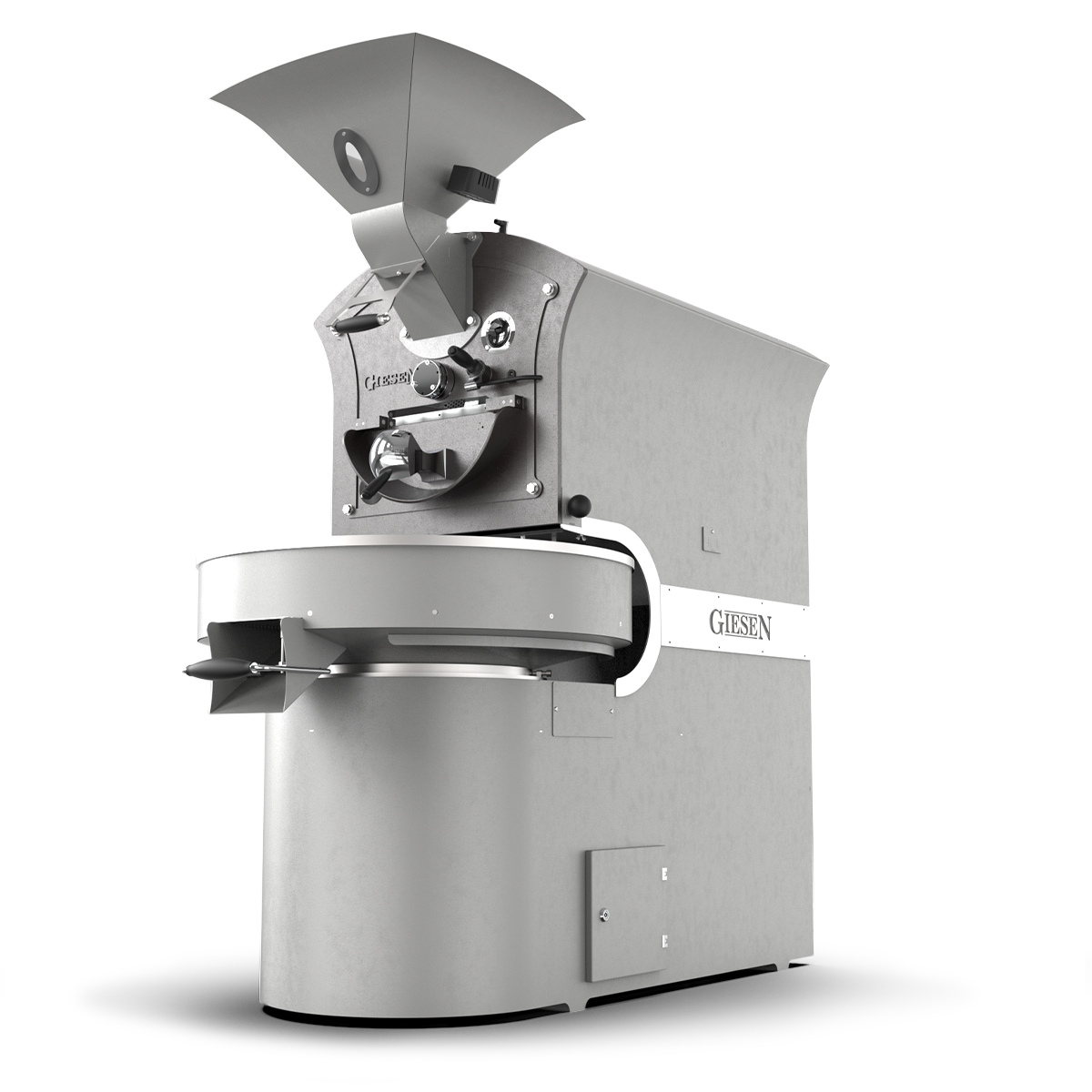

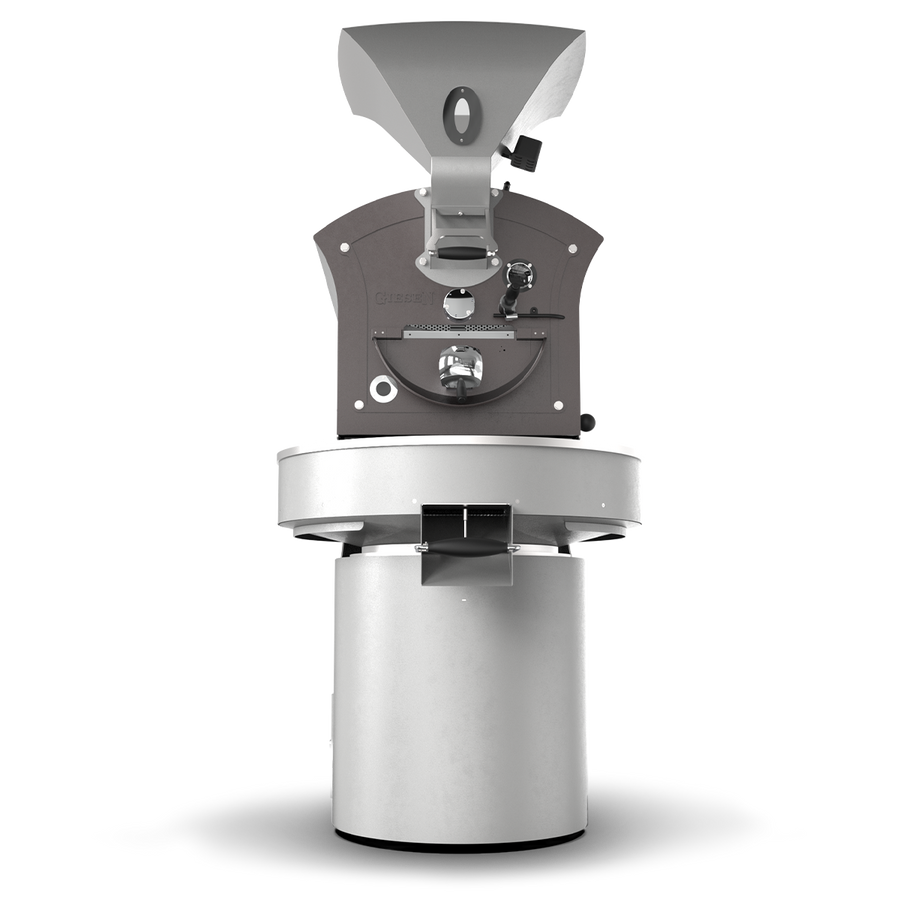

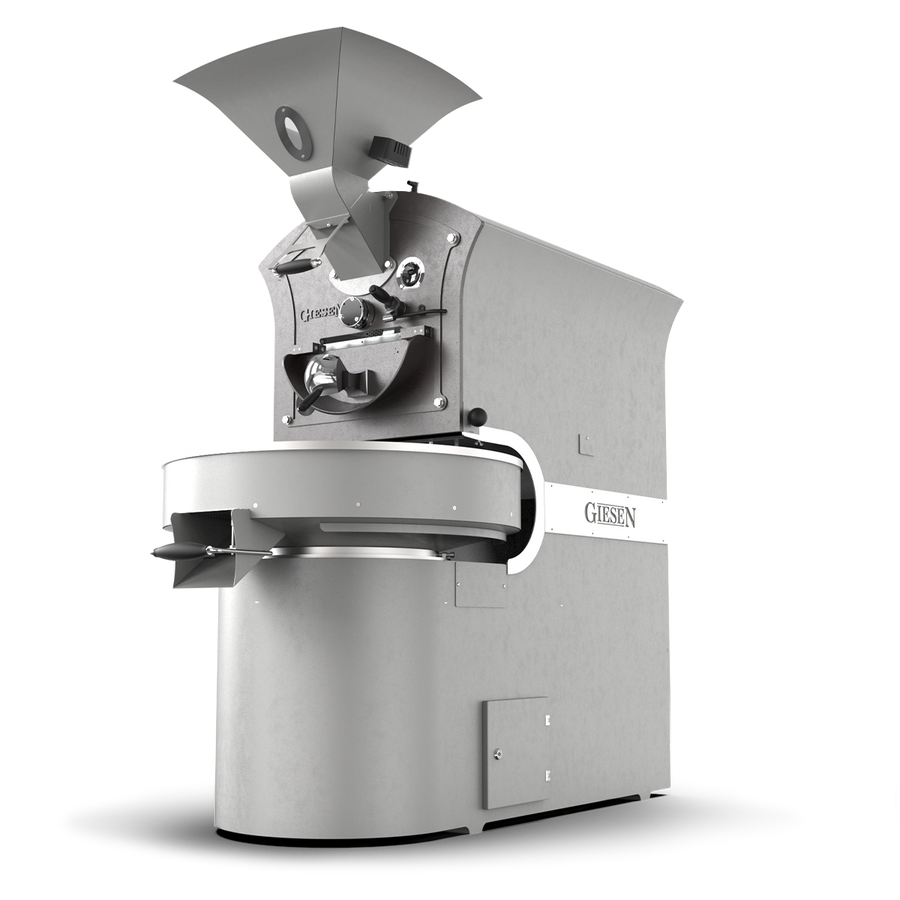

W15A roaster
Experience the ultimate in high-capacity roasting with the Giesen W15A. This 15 kilo gas roaster combines cutting-edge technology with traditional craftsmanship, ensuring every batch meets the highest standards of specialty coffee. Perfect for scaling your operations while maintaining exceptional quality.
- The roaster that grows along
- Roasts up to 60 kilos of coffee per hour
- Can roast on natural, propane and butane gas
- 1899 x 962 x 1983 mm | 650 KG
Choose options
Specifications
General
General specifications include the W15A coffee roaster's dimensions, weight, minimum and maximum batch sizes and the sound level the roaster produces.
Measurements
1899 x 962 x 1983 mm
Weight
650 kg (roaster only)
Minimum batch size
7,5 kg
Maximum batch size
15 kg
Sound level
70 dB (A)
Specifications
Ranges
The ranges include the minimum and maximum underpressure setting of the W15A coffee roaster, the minimum and maximum drum speed, and the minimum and maximum temperature setting.
Underpressure range
80 - 150 Pa (min - max)
Drum range
34 - 49 Hz (min - max)
Hz and RPM can be selected
Temperature setpoint range
100 - 250 °C (min - max)
°C and °F can be selected
Additional specifications
Gas
Gas connection
G 3/8" (male)
Maximum gas consumption
G20 - 3.4 m³/h
G25 / G25.3 - 3.8 m³/h
G30 - 1.29 m³/h
G31 - 0.99 m³/h
Gas inlet pressure
G20 - 20 mbar
G25 / G25.3 - 25 mbar
G30 - 30 / 29 / 50 mbar
G31 - 30 / 37 / 50 mbar
Electric
Supply voltage
230V AC (1L+N+PE)
External fusing
1 x 16A
Maximum electrical power
1,7 kW
Optional additions
Giesen Profiler
Destoner
External cyclone
Green coffee conveyor
SFE filter
Catalytic emission cleaner
