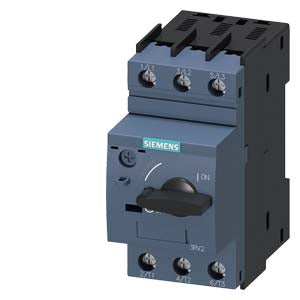

Siemens circuit breaker

Setting range overload protection (A) 2.80/4
Setting range of undelayed short-circuit protection (A) 52/52
Phase failure sensitive Yes
Switch-off technology Magnetic
Operating voltage (measuring voltage) (V) 690/690
Nom. continuous current Iu (A) 4
Nom. power at AC-3, 230 V (kW) 0.75
Rated power at AC-3, 400 V (kW) 1.50
Connection type main circuit Screw connection
Control element version Other
Unit design Flush-mounted technology
With integrated auxiliary contact No
With integrated undervoltage coil No
Number of poles 3
Rated breaking capacity Icu at 400 V, AC (kA) 100
Degree of protection (IP) IP20
Height (mm) 97
Width (mm) 45
Depth (mm) 97
